• Innovations

    With a simple touch, focus on critical details and see more with the OEC Elite CFD C-arm portfolio

    Introducing intuitive and powerful features that enhance control during surgical imaging:

    • Live Zoom brings the power of real-time zoom to surgery suites and enables clinicians to focus in on critical details.  With intuitive touch control, Live Zoom easily zooms up to four times the size on a live image with no change in X-ray technique
    • General HD imaging profile enhances visualization during catheter insertion procedures. The General HD profile softens bones and dense tissue on an X-ray while enhancing visualization of devices, so clinicians can more easily see catheter insertions during procedures like PICC (peripherally inserted central catheters), Port Access, Central Venous Access, and Dialysis catheters.
    • Motorized Drive options for intuitive memory positions including last shot, table side controls, and choice of Super C configurations for cardiac and vascular procedures.





  • Overview

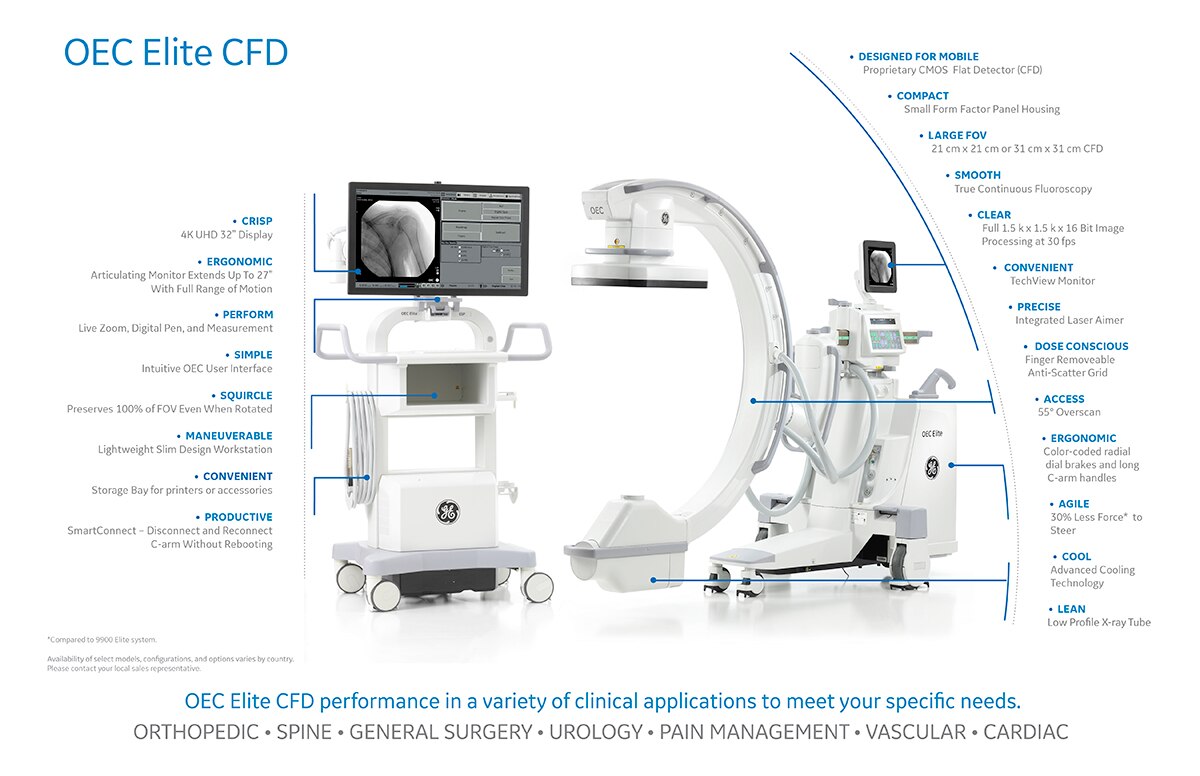

    The OEC Elite CFD is designed to improve your premium C-arm experience enabling you to:

    • See more anatomy with exceptional detail at low dose
    • Experience clinical versatility for complex patients and case mix
    • Enable surgical workflow with ergonomics and efficiency

    With advanced technology, intelligent workflow, and dose control, the OEC Elite CFD is the future of mobile surgical imaging. Choose between three C-arm models, Ergo-C, Super-C, and Super-C Motorized to complement your surgical needs.

    This system is ideally suited for a range of surgical needs including vascular, cardiac, orthopedics, gastrointestinal, endoscopic, urologic, critical care, pain management and emergency procedures.

    Availability of select models and configurations varies by country. Please contact your local sales representative.
    *Based on other OEC models

  • Benefits

    See What You Need to See

    • CFD CMOS Flat Detector—a more efficient panel that delivers better image quality at low dose.
    • True continuous fluoroscopy allows you to view more detail—no stutter, visual lag, or ghosting
    • Largest Field of View (FOV)*—see 20% more anatomy during your procedures

    Ease and Efficiency

    • Efficient image capture with SmartView - 180/180 pivot joint on Ergo C-arm model
    • Easy C-arm positioning with improved maneuverability and light workstation**
    • Simplified user interface with less clicks and active icons

    Imaging Control

    • Enhanced imaging control and planning with Live Zoom, Digital Pen, measurements and annotations
    • Multiple imaging profiles for clinical preference:  General, General HD, Bolus Chase, Vascular, Cardiac, Orthopedic, and Spine
    • Six dose control options that can be used alone or in various combinations: Digital Spot, Digital Cine Pulse, High Level Fluoroscopy, Standard Fluoroscopy, Low Dose, Pulse
    *Compared to monoblock C-arms
    **Compared to 9900

    Availability of select models and configurations varies by country. Please contact your local sales representative.

Clinical Images

  • AAA Calibration Catheter Placement

  • Cardiac Angiogram

  • AP Hip Diamond View

  • AP Lower Thoracic Upper Lumbar

  • AP Shoulder

  • Distal Femoral Angiogram

Videos

  • OEC Elite CFD Overview

  • OEC Elite CFD Ergo C Overview

  • OEC Elite CFD with Motorized Drive

Features

C-arm Models

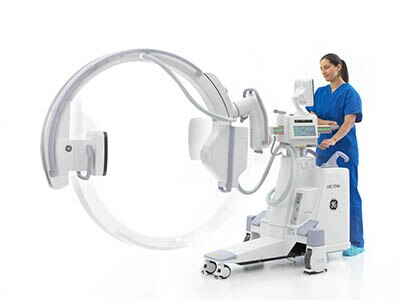

Ergo C

  • Reach with 55° of overscan and 97° underscan
  • Agile C-arm with 26.5" arc depth
  • Efficient positioning with 180°/180° flip flop
  • Set and go with color-coded gradual brakes
  • Accommodating low lateral height
  • Less adjustments with small AP/Lateral offset

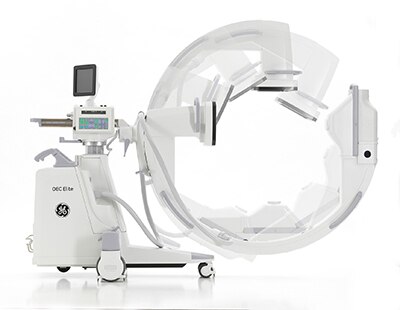

Super C

  • Reach with 55° of overscan and 90° underscan
  • Greater working space with 33" arc depth
  • True lateral views with ease
  • Easy rollover views
  • Accommodating low lateral height
  • Motorized option with remote user interface


  • Accessories

    Protect your staff, patients, and OEC equipment investments with custom fit C-arm drapes and other disposables and accessories.

  • Service and Training

    OEC C-arm Uptime You Can Count On

    Whether you're looking for a full-service contract or on-demand OEC C-arm repairs, it makes good business sense to partner with us to keep your equipment up and running.

    Learn how GE Healthcare's OEC C-arm Service offerings are redefining peace-of-mind.
